Supercritical CO2 Property Surrogate with PySMO Surrogate Object - Training Surrogate (Part 1)#

Maintainer: Javal Vyas

Author: Javal Vyas

Updated: 2024-01-24

1. Introduction#

This notebook illustrates the use of the PySMO Polynomial surrogate trainer to produce an ML surrogate based on supercritical CO2 data from simulation using REFPROP package. PySMO also has other training methods like Radial Basis Function and Kriging surrogate models, but we focus on Polynomial surrogate model.

There are several reasons to build surrogate models for complex processes, even when higher fidelity models already exist (e.g., reduce model size, improve convergence reliability, replace models with externally compiled code and make them fully-equation oriented).

In this example, we intend to make a surrogate for the physical properties of S-CO2 to be embedded in the property package. This property package will be used to get the physical properties of S-CO2 in the flowsheet simulation. To learn more about property package, see the IDAES-PSE Github Page or IDAES Read-the-docs.

1.1 Need for ML Surrogates#

The properties predicted by the surrogate are enthalpy and entropy of the S-CO2 based on the pressure and temperature of the system. The analytical equation of getting the enthalpy and entropy from pressure and temperature are in the differential form and would make the problem a DAE system. To counter this problem and keep the problem algebric, we will use the ML surrogates and relate enthalpy and entropy with the pressure and temperature as an algebric equation.

1.2 Supercritical CO2 cycle process#

The following flowsheet will be used to optimize the design for the cooling of the fusion reactor using supercritical CO2 cycle. We shall focus on training the surrogate for this notebook and move to constructing the flowsheet and the properties package in the subsequent notebooks. The take away from this flowsheet is that, 3 variables can be measured in any given unit which are flow, pressure and temperature and other properties can be calculated using them. Thus, surrogate should have pressure and temperature as the inputs.

In this example, we will train the model using polynomial regression for our data and then demonstrate that we can solve an optimization problem with that surrogate model.

from IPython.display import Image
from pathlib import Path


def datafile_path(name):
    return Path("..") / name


Image(datafile_path("CO2_flowsheet.png"))
../../../../_images/d8050a37171e8e1c8ef9b92bd7f8a6b2f52abfff04d2faffafe235388ba5adee.png

2. Training and Validating Surrogate#

First, let’s import the required Python and IDAES modules:

# Import statements
import os
import numpy as np
import pandas as pd

# Import IDAES libraries
from idaes.core.surrogate.sampling.data_utils import split_training_validation
from idaes.core.surrogate.pysmo_surrogate import PysmoPolyTrainer, PysmoSurrogate
from idaes.core.surrogate.plotting.sm_plotter import (
    surrogate_scatter2D,
    surrogate_parity,
    surrogate_residual,
)

2.1 Importing Training and Validation Datasets#

In this section, we read the dataset from the CSV file located in this directory. 500 data points were simulated for S-CO2 physical properties using REFPROP package. This example is trained on the entire dataset because neural network can overfit on smaller dataset. The data is separated using an 80/20 split into training and validation data using the IDAES split_training_validation() method.

We rename the column headers because they contained “.”, which may cause errors while reading the column names in subsquent code, thus as a good practice we change them to the variable names to be used in the property package. Further, the input variables are pressure, temperature , while the output variables are enth_mol, entr_mol, hence we create two new dataframes for the input and output variables.

# Import training data
np.set_printoptions(precision=6, suppress=True)

csv_data = pd.read_csv(datafile_path("500_Points_DataSet.csv"))
csv_data.columns.values[0:6] =["pressure", "temperature","enth_mol","entr_mol","CO2_enthalpy","CO2_entropy"]
data = csv_data.sample(n=500)

input_data = data.iloc[:, :2]
output_data = data.iloc[:, 2:4]

# # Define labels, and split training and validation data
input_labels = list(input_data.columns)
output_labels =  list(output_data.columns)

n_data = data[input_labels[0]].size
data_training, data_validation = split_training_validation(
    data, 0.8, seed=n_data
)

2.2 Training Surrogates with PySMO#

IDAES builds a model class for each type of PySMO surrogate model. In this case, we will call and build the Polynomial Regression class. Regression settings can be directly passed as class arguments, as shown below. In this example, allowed basis terms span a 5th order polynomial, a variable product as well as a extra features are defined, and data is internally cross-validated using 10 iterations of 80/20 splits to ensure a robust surrogate fit. Note that PySMO uses cross-validation of training data to adjust model coefficients and ensure a more accurate fit, while we separate the validation dataset pre-training in order to visualize the surrogate fits.

Finally, after training the model we save the results and model expressions to a folder which contains a serialized JSON file. Serializing the model in this fashion enables importing a previously trained set of surrogate models into external flowsheets. This feature will be used later.

# Create PySMO trainer object
trainer = PysmoPolyTrainer(
    input_labels=input_labels,
    output_labels=output_labels,
    training_dataframe=data_training,
)

var = output_labels
trainer.config.extra_features=['pressure*temperature*temperature','pressure*pressure*temperature*temperature','pressure*pressure*temperature','pressure/temperature','temperature/pressure']
# Set PySMO options
trainer.config.maximum_polynomial_order = 5
trainer.config.multinomials = True
trainer.config.training_split = 0.8
trainer.config.number_of_crossvalidations = 10

# Train surrogate (calls PySMO through IDAES Python wrapper)
poly_train = trainer.train_surrogate()

# create callable surrogate object
xmin, xmax = [7,306], [40,1000]
input_bounds = {input_labels[i]: (xmin[i], xmax[i]) for i in range(len(input_labels))}
poly_surr = PysmoSurrogate(poly_train, input_labels, output_labels, input_bounds)
# save model to JSON
model = poly_surr.save_to_file("pysmo_poly_surrogate.json", overwrite=True)
===========================Polynomial Regression===============================================

No iterations will be run.
Default parameter estimation method is used.
Parameter estimation method:  pyomo

No iterations will be run.
WARNING: Could not locate the 'ipopt' executable, which is required for solver
ipopt
---------------------------------------------------------------------------
ApplicationError                          Traceback (most recent call last)
Cell In[5], line 17
     14 trainer.config.number_of_crossvalidations = 10
     16 # Train surrogate (calls PySMO through IDAES Python wrapper)
---> 17 poly_train = trainer.train_surrogate()
     19 # create callable surrogate object
     20 xmin, xmax = [7,306], [40,1000]

File ~/checkouts/readthedocs.org/user_builds/idaes-examples/envs/latest/lib/python3.8/site-packages/idaes/core/surrogate/pysmo_surrogate.py:196, in PysmoTrainer.train_surrogate(self)
    194 if hasattr(self, "_input_bounds"):
    195     self._trained.input_bounds = self._input_bounds
--> 196 self._training_main_loop()
    197 return self._trained

File ~/checkouts/readthedocs.org/user_builds/idaes-examples/envs/latest/lib/python3.8/site-packages/idaes/core/surrogate/pysmo_surrogate.py:223, in PysmoTrainer._training_main_loop(self)
    221 # Create and train model
    222 model = self._create_model(pysmo_input, output_label)
--> 223 model.training()
    224 # Store results
    225 result = PysmoSurrogateTrainingResult()

File ~/checkouts/readthedocs.org/user_builds/idaes-examples/envs/latest/lib/python3.8/site-packages/idaes/core/surrogate/pysmo/polynomial_regression.py:1642, in PolynomialRegression.training(self)
   1638 npe = NumpyEvaluator(cMap)
   1639 additional_data = list(
   1640     npe.walk_expression(term) for term in self.additional_term_expressions
   1641 )
-> 1642 return self.polynomial_regression_fitting(additional_data)

File ~/checkouts/readthedocs.org/user_builds/idaes-examples/envs/latest/lib/python3.8/site-packages/idaes/core/surrogate/pysmo/polynomial_regression.py:1476, in PolynomialRegression.polynomial_regression_fitting(self, additional_regression_features)
   1474 for poly_order in range(1, self.max_polynomial_order + 1):
   1475     for cv_number in range(1, self.number_of_crossvalidations + 1):
-> 1476         phi, train_error, cv_error = self.polyregression(
   1477             poly_order,
   1478             training_data["training_set_" + str(cv_number)],
   1479             cross_val_data["test_set_" + str(cv_number)],
   1480             training_data["training_extras_" + str(cv_number)],
   1481             cross_val_data["test_extras_" + str(cv_number)],
   1482         )
   1483         if cv_error < best_error:
   1484             best_error = cv_error

File ~/checkouts/readthedocs.org/user_builds/idaes-examples/envs/latest/lib/python3.8/site-packages/idaes/core/surrogate/pysmo/polynomial_regression.py:900, in PolynomialRegression.polyregression(self, poly_order, training_data, test_data, additional_x_training_data, additional_x_test_data)
    896     phi_vector = self.bfgs_parameter_optimization(
    897         x_polynomial_data, y_training_data
    898     )
    899 elif self.solution_method == "pyomo":
--> 900     phi_vector = self.pyomo_optimization(x_polynomial_data, y_training_data)
    901 phi_vector = phi_vector.reshape(
    902     phi_vector.shape[0], 1
    903 )  # Pseudo-inverse approach
    905 x_polynomial_data_test = self.polygeneration(
    906     poly_order, self.multinomials, x_test_data, additional_x_test_data
    907 )

File ~/checkouts/readthedocs.org/user_builds/idaes-examples/envs/latest/lib/python3.8/site-packages/idaes/core/surrogate/pysmo/polynomial_regression.py:816, in PolynomialRegression.pyomo_optimization(x, y)
    814 opt.options["max_iter"] = 1000
    815 # TODO: Should this be checking the for a feasible solution?
--> 816 opt.solve(instance)
    818 # Convert theta variable into numpy array
    819 phi = np.zeros((len(instance.theta), 1))

File ~/checkouts/readthedocs.org/user_builds/idaes-examples/envs/latest/lib/python3.8/site-packages/pyomo/opt/base/solvers.py:534, in OptSolver.solve(self, *args, **kwds)
    531 def solve(self, *args, **kwds):
    532     """Solve the problem"""
--> 534     self.available(exception_flag=True)
    535     #
    536     # If the inputs are models, then validate that they have been
    537     # constructed! Collect suffix names to try and import from solution.
    538     #
    539     from pyomo.core.base.block import _BlockData

File ~/checkouts/readthedocs.org/user_builds/idaes-examples/envs/latest/lib/python3.8/site-packages/pyomo/opt/solver/shellcmd.py:139, in SystemCallSolver.available(self, exception_flag)
    137     if exception_flag:
    138         msg = "No executable found for solver '%s'"
--> 139         raise ApplicationError(msg % self.name)
    140     return False
    141 return True

ApplicationError: No executable found for solver 'ipopt'

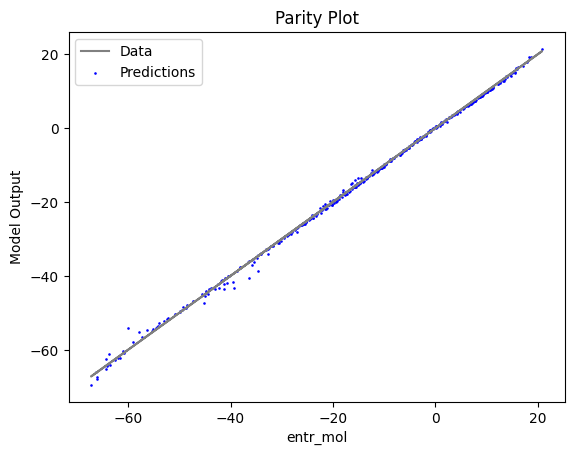

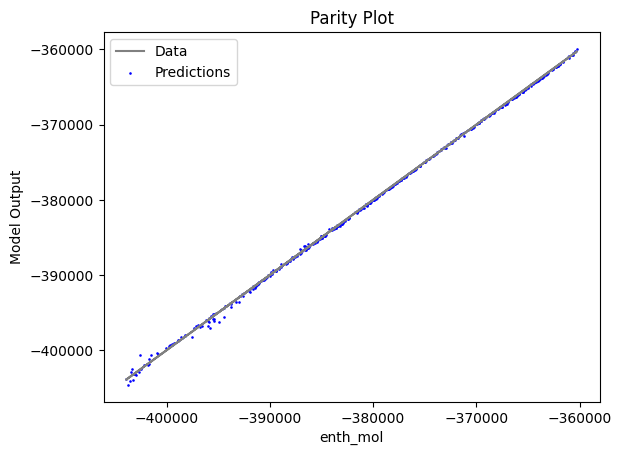

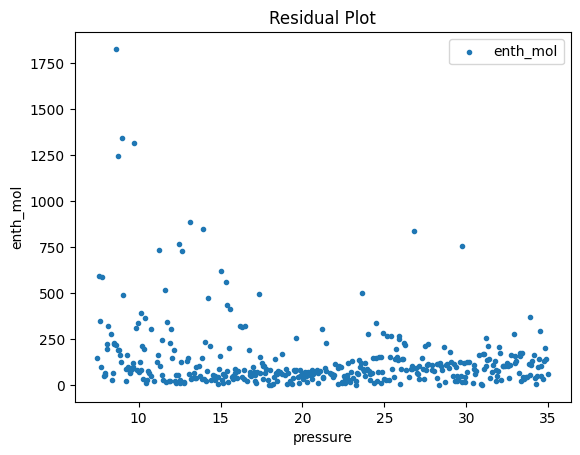

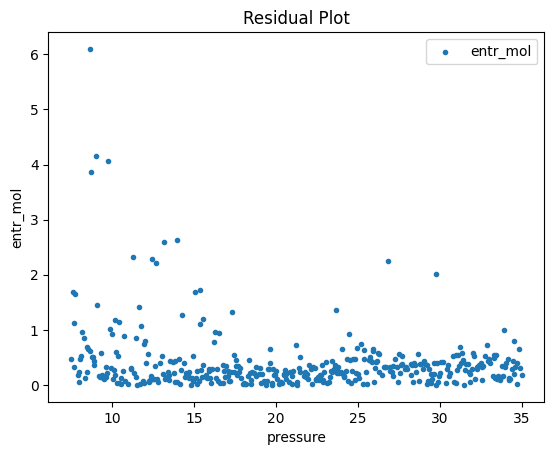

2.3 Visualizing surrogates#

Now that the surrogate models have been trained, the models can be visualized through scatter, parity and residual plots to confirm their validity in the chosen domain. The training data will be visualized first to confirm the surrogates are fit the data, and then the validation data will be visualized to confirm the surrogates accurately predict new output values.

# visualize with IDAES surrogate plotting tools
surrogate_scatter2D(poly_surr, data_training, filename="pysmo_poly_train_scatter2D.pdf")
surrogate_parity(poly_surr, data_training, filename="pysmo_poly_train_parity.pdf")
surrogate_residual(poly_surr, data_training, filename="pysmo_poly_train_residual.pdf")
../../../../_images/2748dfb0d05b2ca84047f6767ca66c68e7ae102ffa36c84fd91b96ee579c31d2.png ../../../../_images/a14712bb961b61624b5ba1709377835e80061f2b6f107f91f597a7b59ffbe982.png ../../../../_images/7506f70cccc9a78022fe4468f73b6fb11d5773b1671e347509fe5ac8b06c7c64.png ../../../../_images/bdad04499ed27f3c820a7a71f0588e4a4c2b89e67730ccde538e7943baabdb53.png ../../../../_images/e72ad5fcf4e927af810eff0405de60358d18a991a1695ddfdcd2ca865bdaea53.png ../../../../_images/a88eab9241c188e22cdeba25dfc389112db8eda746d1e45d777399e4dc401acd.png ../../../../_images/40df59ce17159665e48ca337b8edc3a356237fc721ef40585b02135b7e7fe5d6.png ../../../../_images/6d37abee975f9653b98d9de71fb78db5e0787ec9d8b0879c093b04bc109cf7c1.png ../../../../_images/e7ecc6027ed6b0db74254a7d9fcd4847b893bb457d99d5942a7c34410e2090c6.png ../../../../_images/617b20af8b2af838a2364012f568e45fcf025ed5a9a6c7e940971e9339e79284.png

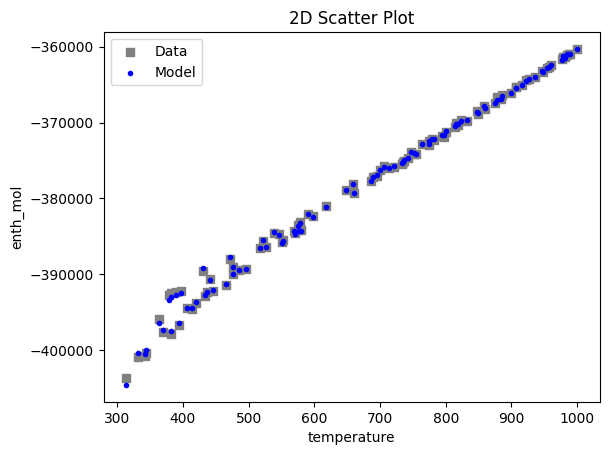

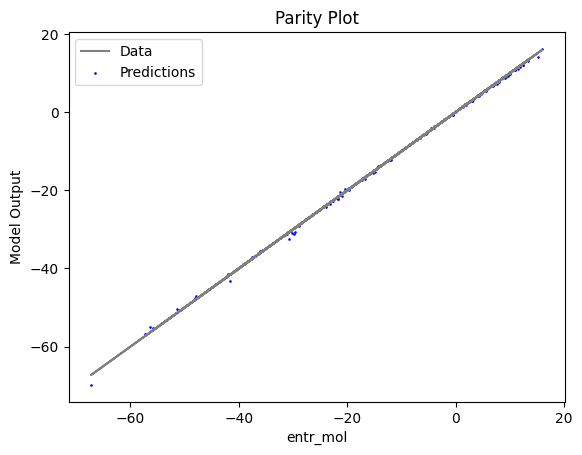

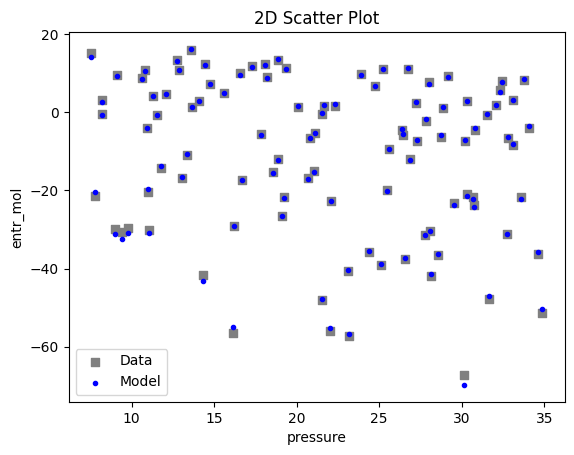

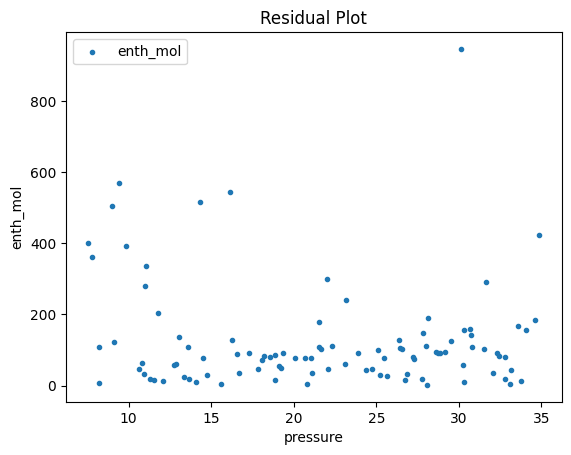

2.4 Model Validation#

We check the fit on the validation set to see if the surrogate is fitting well. This step can be used to check for overfitting on the training set.

# visualize with IDAES surrogate plotting tools
surrogate_scatter2D(poly_surr, data_validation, filename="pysmo_poly_val_scatter2D.pdf")
surrogate_parity(poly_surr, data_validation, filename="pysmo_poly_val_parity.pdf")
surrogate_residual(poly_surr, data_validation, filename="pysmo_poly_val_residual.pdf")
../../../../_images/eabf22241d8cb2217f51ab4b13f5813670dbf154c2dfd4c69b65d908eba8478b.png ../../../../_images/3d297469024f9ee250fcc5c89ff1350aec7f62f3b13d611dc25d5240b2a041e9.png ../../../../_images/09626d35b0f09d09570f5b90c0415e7155979a667f95acd2c725f5f66830f90d.png ../../../../_images/89de23d452fefab8fd0a55d7bdf638d90bc1edeeca9c4294546f849ab10cb241.png ../../../../_images/ae6f4a02c62bfd2e51ca8473efb6b5f5c07ef7901677ad5d54741a26db750e01.png ../../../../_images/743974c6e8e80c590ca8784d75da948c00c5ad499a17dd7103cc73817eb861dc.png ../../../../_images/1830c23295e35391d0e4454e4d7a87e830e20358cf88e73f3b5bfb518d4cf108.png ../../../../_images/bb6aace0bc5ae5ac223dcad482c6149bc997255e4fb06259215d559e091918cf.png ../../../../_images/adc42ab23908d67bf0fabca863a886d3aa16b74e248fbc26b9a44f51dc2f9db3.png ../../../../_images/67105072fa30fe17aa2745f7d3249efa60e28f5239f4232cdda0b28cd2fedf5e.png

Now, the surrogate is trained and validated, we shall embed it in the property package, which is demonstrated in the surrogate_embedding file.
